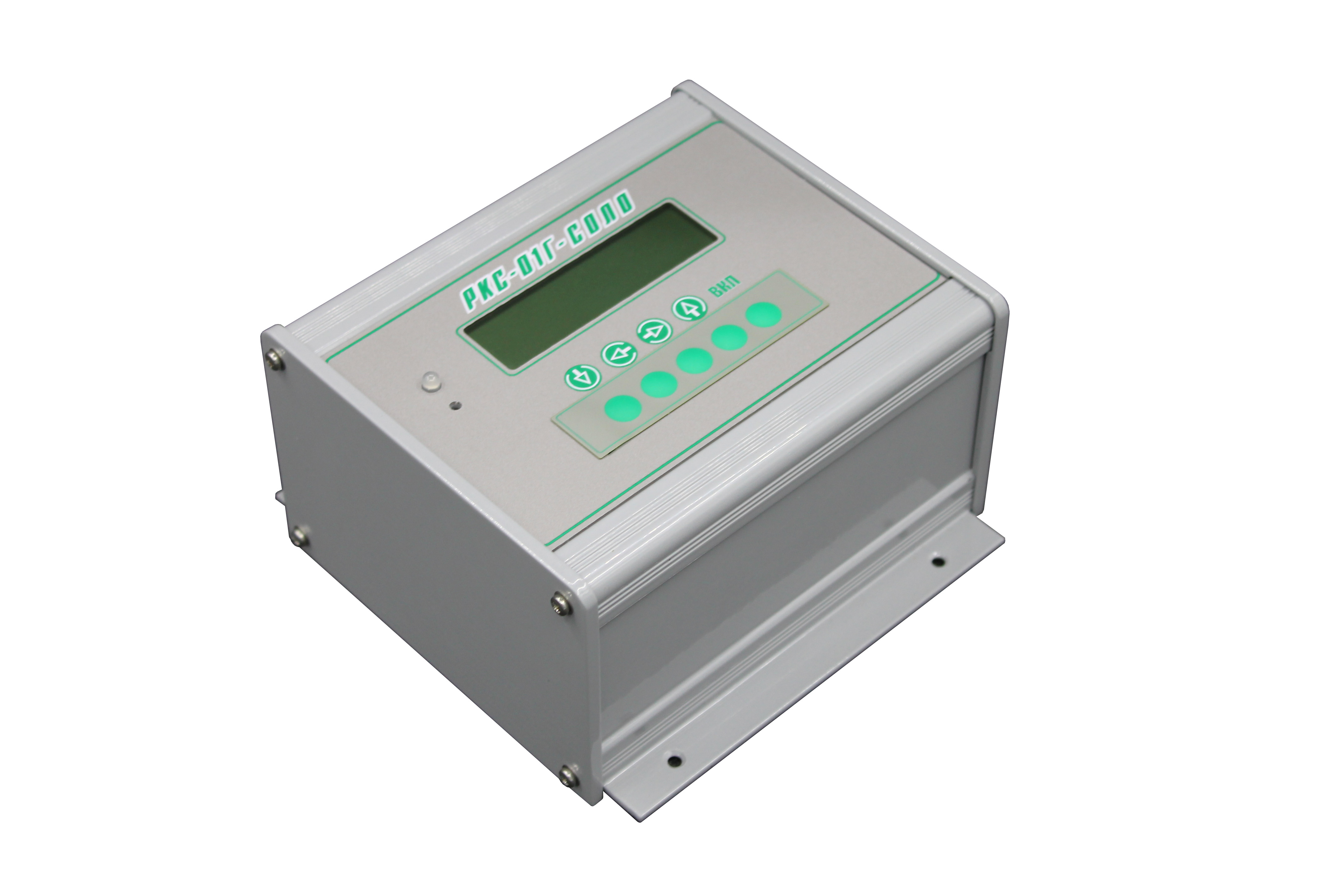

Radiometer-dosimeter RKS-01G-SOLO (wall-mounted, with integrated detection unit)

Radiometer-dosimeter RKS-01G-SOLO (wall-mounted, with integrated detection unit)

The RKS-01G-SOLO radiometer-dosimeter is designed for the detection of gamma radiation sources, operational radiation monitoring in areas and at enterprises requiring constant radiation monitoring.

The device has a handy LCD readout, as well as light sound alarm.

The device is included in the State Register of the Republic of Kazakhstan under no. KZ.02.01.02587-2024
Manufacturer: SOLO LLP
Country: Republic of Kazakhstan

Warranty period: 12 months
After-sales service: during the entire period of operation

  • Description

    The dosimeter is permanently installed in places of constant radiation monitoring and is designed to measure:

    • ambient equivalent dose rate of gamma radiation;
    • ambient equivalent dose of gamma radiation.

    The dosimeter consists of a control panel and a built-in detection unit.

    The flattening of nonlinearity of the energy dependence of the sensitivity of scintillators is performed by an analog-to-digital converter. The device performs basic radiation control tasks in accordance with the Hygiene Standards of the Sanitary and Epidemiological Guidelines for Radiation Safety (HS SEGRS) (NRB) and the of the Sanitary Rules of the Sanitary and Epidemiological Guidelines for Radiation Safety (SR SEGRS).

  • Features
    • Scintillation detection unit;
    • Automatic recording of gamma radiation background;
    • Two programmed alarm thresholds for radioactive source detection.
    • Light and sound alarm warning is activated when the thresholds are exceeded;
    • LCD readout for battery charge level;
    • Computer connection interface for transferring measurement data, time and values stored in the device memory;
    • RS-232, USB interface for transferring data to a PC;
    • The device memory can store up to 1,000 measurements which can be displayed on the control panel and through the interface on the PC.
  • Characteristics

    MAIN CHARACTERISTICS

    The device consists of a control panel and built-in detection unit.

    Characteristic

    Value



    Gamma radiation detection unit

    Detector

    scintillation type

    Gamma radiation energy range

    from 20 keV to 10 MeV

    Measurement range for ambient equivalent dose rate

    from 0.01 to 500 μSv/h

    Measurement range for ambient equivalent dose

    from 0.01 to 5×108 μSv

    Maximum acceptable reference relative error

    ±12%

    Wide-range gamma radiation detection unit

    Detector

    scintillation type

    Gamma radiation energy range

    from 20 keV to 10 MeV

    Measurement range for ambient equivalent dose rate

    from 0.01 to 15×106 μSv/h

    Measurement range for ambient equivalent dose

    from 0.01 to 5×108 μSv

    Maximum acceptable reference relative error

    ±12%


    Overall dimensions of the control panel, max.

    170×100×90 mm

    Weight of the control panel, max.

    1.0 kg

    Operating temperature range of the control panel and detection units

    from –40°C to +50°C.

    For voice guidance and data storage

    from –40°C to +50°C.

    LCD data readout display

    from –30°C to +50°C.

    Power supply

    built-in 7.2 V lithium-ion battery or included AC adapter with 12 V output voltage

    Scope of delivery

    No.

    Name

    Quantity

    1

    Dosimeter control panel

    1

    2

    Power adapter

    1

    3

    PC connection cable

    1

    4

    CD (or flash drive) with software

    1

    5

    USB converter

    1

    6

    How-to documentation (user manual)

    1

    7

    Warranty card

    1

    8

    Verification certificate

    1
